The DS MINIMAL 70 windows, made with Rehau RAU-FIPRO profile, a composite material that allows for extremely slim frames, offering larger glass surfaces and more light.
In fact, the MINIMAL 70 windows allow 15% more light compared to traditional frames, making the environment more comfortable and bright.
Design, security with the hidden sash, thermal and acoustic insulation with three levels of seals, and environmental respect: all this is possible with MINIMAL 70 windows.

Technical characteristics

Extruded PVC profiles REHAU RAU-FIPRO
Air, water, wind tightness Triple seal
Resistance to break-in Up to RC2
Glass applications With 45° cut glazing bead
Glass chamber Variable up to 44mm

General performance

Thermal insulation
calculated on a 1-leaf window 800 x 1500 with glass Ug = 1.0 (warm edge) Uw = 1.2 W/m2K
calculated on a 1-leaf window 800 x 1500 with glass Ug = 0.7 (warm edge) Uw = 0.9 W/m2K
Air permeability (DIN EN 12207) CLASS 4
Water tightness (DIN EN 12208) E900 for windows
Wind load resistance (DIN EN 12210) C3
Sound insulation Up to 46 dB

Legend

  • Co-extruded glazing seals
  • Structural bonding of the glass
  • Galvanized steel reinforcements
  • Triple co-extruded seal for excellent tightness
  • Shaped sash profile

The DS_MINIMAL70 system for PVC windows features a construction depth of 70 mm with a 6-chamber frame, a 5-chamber sash, and the ability to accommodate glass up to 44 mm (double-glazed units).

The profiles contain three co-extruded and weldable sealing gaskets for reliable and long-lasting protection against air and moisture.

The main profiles are made with high-quality REHAU RAU-FIPRO® PVC: the lead- and cadmium-free formulation, compliant with the use in climate zone S (according to UNI EN 12608), ensures high resistance to aging and weathering agents.

The sash/frame system is capable of providing thermal transmittance values Uf up to 1 W/m²K in accordance with EN 12412-2. The air permeability value, in accordance with DIN EN 12207, is Class 4. The sound insulation value (depending on the glass and profile) Rw can reach 46 dB, in accordance with ISO 10140-2.

All certified values are validated by internationally recognized notified external laboratories, such as the IFT Institute in Rosenheim.

The Minimal 70 system carries the German “RAL” quality seal awarded by TÜV. The profiles are produced according to the ISO 9001 quality control system and the ISO 14001 environmental control system. Additionally, the Minimal 70 system belongs to the REHAU NEFERIA system family, which is included in the GBCe materials and data platform, helping to achieve Breeam, EPD, and VinylPlus certifications to meet the requirements of Minimum Environmental Criteria (CAM).

The windows will be supplied with the CE Marking, as required by the product standard EN14351-1.

Available design lines

Since the eye also wants its share, windows should not only be functional, but also beautiful.
Windows made with DS MINIMAL profiles are available in a wide range of colours and different sash profile variants, so you can choose the style that best matches your home.

Since the eye also wants its share, windows should not only be functional, but also beautiful.
Windows made with DS MINIMAL profiles are available in a wide range of colours and different sash profile variants, so you can choose the style that best matches your home.

CLASSIC LINE

(recessed sash and rounded glazing bead)

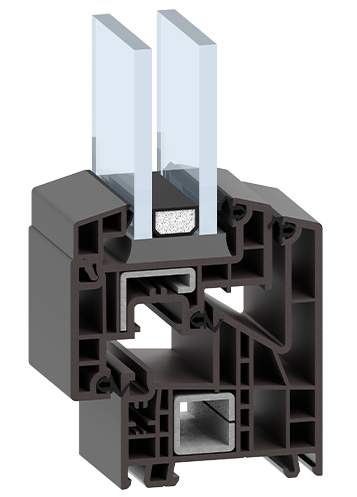

FLAT LINE

(retracted sash and inclined glazing bead)

Profile joints available on the inside of the window frame

More than 40 colours

More than 40 colours to choose from, special shapes that can be easily achieved, and the possibility to differentiate the internal finish from the external one, creating your own two-tone window: with DS 70 mm profiles, you can unleash your imagination, create your own style, and transform the window into a design element. Regardless of the colour, the window will maintain its appearance over time because DS profiles are resistant to weather conditions, and the colours remain stable over the years.

Frassino

Sheffield Rovere Light

Pino Nudo

Douglas

Quercia irlandese

Winchester XA

Noce Kolonial

Ciliegio soft

Rovere gold

Noce

Sheffield Oak Alpine

Sheffield Oak Concrete

Turner Oak Malt

Turner Oak Toffee

Kitami Dark

Pepper Oak Super-Matt

Weissbach Eiche Super-Matt

Ginger Oak Super-Matt

Cinnamon Oak Super-Matt

Honey Oak Super-Matt

Amaranth Oak Super-Matt

Verkehrsweiss

Crema Matt

Quarzgrau

Umbragrau

S-Bronze

Fenster Grau

Basalt Grau

Anthrazit Grau

Grigio Scuro Matt

Jet Black

Bianco latte

Crema

Grigio chiaro

Metbrush Aluminium

Grigio argento

Grigio antracite

Bronzo

Blu brillante

Verde muschio

Verde scuro

Rosso scuro

Basic system dimensions

Telaio sez. 70 mm
Anta sez. 70 mm
Aletta di battuta 0/40 mm
